4.3 Logics

Last modified by Admin on 2026/04/02 12:56

Monitoring

Cells

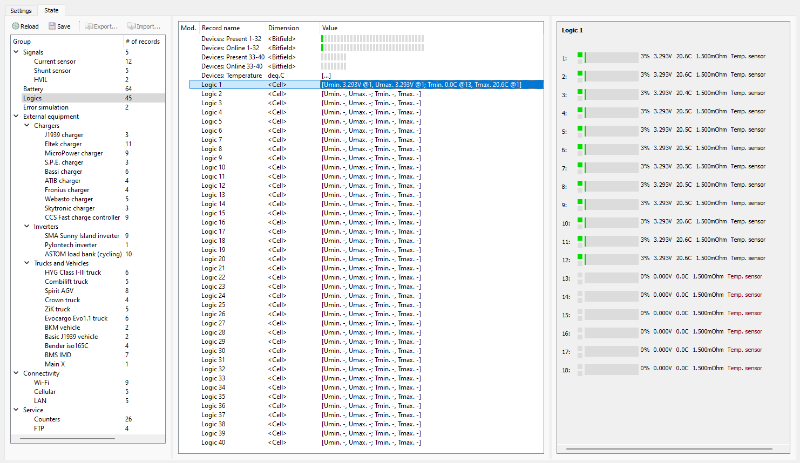

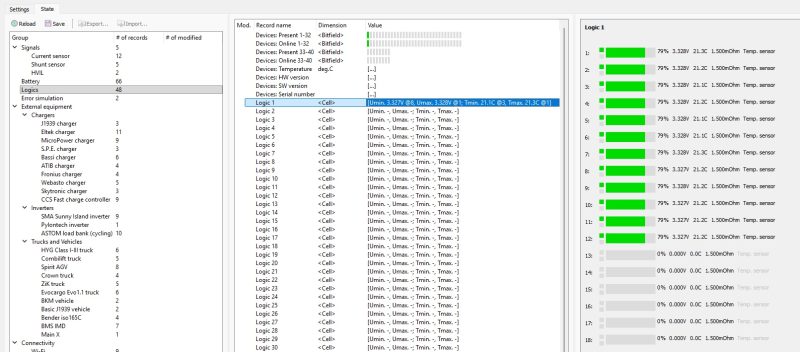

The summary information on all battery cells can be found in the "Logics" section.


In this section:

  • Devices: Present 1-32, Devices: Present 33-40 – bitfields indicating Logics that were found during BMS initialization;
  • Devices: Online 1-32, Devices: Online 33-40 – bitfields indicating Logics that are online at that moment;
  • Devices: Temperature – information about all Logics temperature;
  • Devices: HW version – a hardware revision of BMS Logic devices;
  • Devices: SW version – a software version of BMS Logic devices;
  • Devices: Serial number – a serial numbers of BMS Logic devices;
  • Logic 1 - Logic 40 – a section with Logic data with relative cells information:
    • Green indicator – cell is connected to BMS Logic;
    • Red indicator – cell is balancing;
    • SOC indicator, %;
    • Cell voltage, V;
    • Cell temperature, ºC;
    • Cell resistance, mOhm;
    • Indication of connected temperature sensor: black – connected, red – not connected.
