Monitoring

Service

Counters

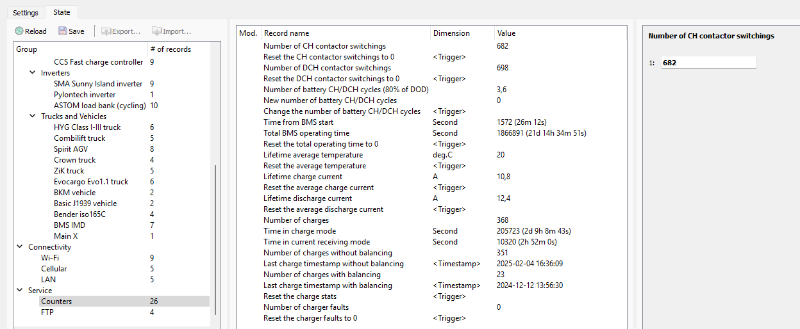

The state of the device counters is located in the "Service - Counters" section:

In this section:

• Number of CH contactor switchings;
• Number of DCH contactor switchings;
• Number of battery CH/DCH cycles (80% of DOD);
• Time from BMS start, s;
• Total BMS operating time, s;
• Lifetime average temperature, ºC;
• Lifetime charge current, A;
• Lifetime discharge current, A;
• Number of charges;
• Time in charge mode, second;
• Time in current receiving mode, second;
• Number of charges without balancing;
• Last charge timestamp without balancing;
• Number of charges with balancing;
• Last charge timestamp with balancing;
• Number of charger faults.

FTP

Information about the status of the FTP connection to the remote server is in the "Service - FTP" section:

In this section:

• Last log in timestamp – a time of the last connection to the FTP server;
• Last successful transmission timestamp – a time of the last successful transfer of the log file to the FTP server;
• Timestamp for resending log files from – a time from which log files will be resend to the server;
• Resend log files – a trigger to start resending of log files.
