4.3 Cells

Last modified by Admin on 2026/09/04 13:20

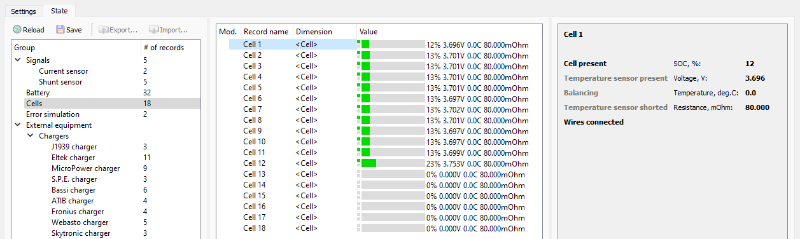

Summary information on all battery cells can be found in the "Cells" section:


Detailed information on each cell is in the sections "Cells → Cell 1-18":

In this section:

  • Indicators:
    • Cell present – cell is connected and recognized (green indicator in Values column);
    • Temperature sensor present – temperature sensor connected and recognized;
    • Balancing – cell balancing indicator (red indicator in Values column);
    • Temperature sensor shorted;
    • Wires connected – lines connecting the cell are connected to the BMS;
  • SOC, % – state of charge (graphic indicator in Values column);
  • Voltage, V – cell voltage;
  • Temperature, deg.C – cell temperature;
  • Resistance, mOhm – cell resistance.
