4.1 Signals

Last modified by Admin on 2026/09/04 13:58

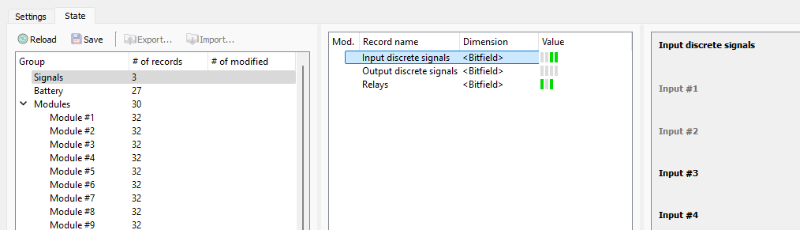

States of the device's discrete inputs are available in the "Signals – Input discrete signals" section:


In this section:

  • Input #1 - Input #4 – states of the inputs 1-4 respectively.

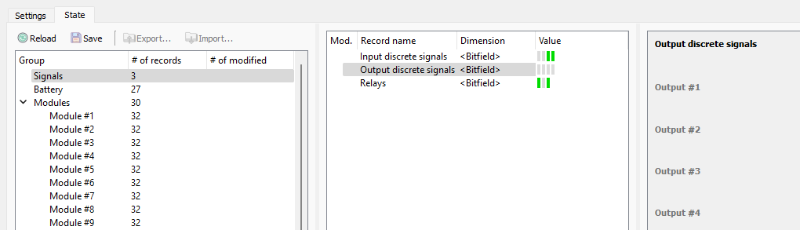

States of the device's discrete outputs are available in the "Signals – Output discrete signals" section:


In this section:

  • Output #1 - Output #4 – states of the outputs 1-4 respectively.

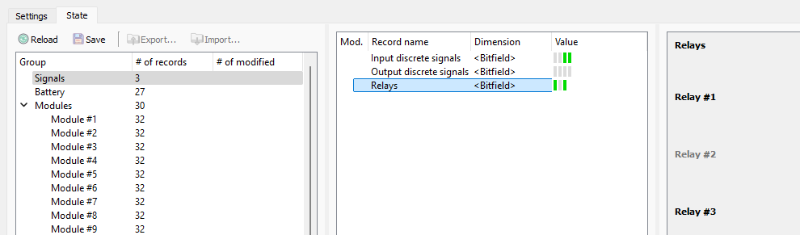

States of the device's relays are available in the "Signals – Relays" section:


In this section:

  • Relay #1 - Relay #3 – states of the relays 1-3 respectively.
