3.6 Connectivity

Version 3.1 by Admin on 2025/03/03 10:19

Settings

Connectivity

CAN (external)

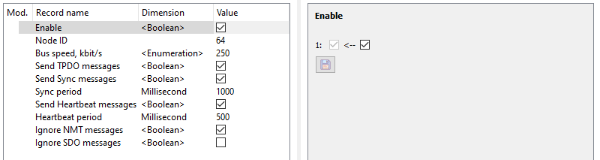

To change the parameters of the external CAN bus, designed to configure the device and interact with the upper-level system, select the "Connectivity - CAN (external)" section:


In this section:

  • Enable – a flag to enable the CAN bus transceiver;
  • Node ID – an identifier of the device in the CANopen network;
  • Bus speed – CAN bus baud rate;
  • Send TPDO messages – a flag to enable sending TPDO messages on each Sync message;
  • Send Sync messages – a flag to enabled sending Sync messages (CANID = 0x80, no data);
  • Sync period – a period of sending Sync messages, ms;
  • Send Heartbeat messages – a flag to enable sending Heartbeat messages;
  • Heartbeat period – a period of sending Heartbeat messages, ms;
  • Ignore NMT messages – a flag to ignore NMT messages;
  • Ignore SDO messages – a flag to forbid communication using the CANopen SDO protocol.

To apply new settings please restart the BMS Main X.

CAN (internal)

To change the parameters of the internal CAN bus designed to interact with battery modules based on BMS Main 2.x or BMS Mini S / BMS Mini 2, select the "Connectivity - CAN (internal)" section:


In this section:

  • Enable – a flag to enable the CAN bus transceiver;
  • Bus speed – CAN bus baud rate.

To apply new settings please restart the BMS Main X.

Modbus (RS-485)

The BMS Main X device supports the Modbus RTU protocol over the RS-485 bus.

To change the parameters for connecting to the RS-485 bus, select the “Connectivity – Modbus (RS-485)” section:


In this section:

  • Enable – a flag to enable the RS-485 transceiver;
  • Address – a network address of the device;
  • Baud rate – RS-485 bus baud rate.

To apply new settings please restart the BMS Main X.

Wi-Fi

With the help of the BMS Wi-Fi module, the BMS Main X supports connection to a Wi-Fi network.

To change the settings for connecting to a Wi-Fi network, select the "Connectivity - Wi-Fi" section:


In this section:

  • Enable – a flag to enable connection to a Wi-Fi network;
  • SSID – a name of the Wi-Fi network;
  • Password – a password to connect to the Wi-Fi network;
  • Security type – a secure connection type.
