Profile

Battery

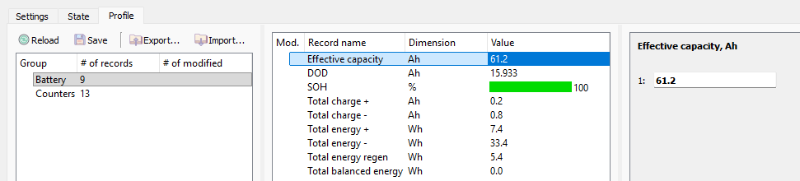

Battery profile data is summarized in the "Battery" section:

In this section:

• Effective capacity, А×h;
• DOD – depth of discharge of the battery, A×h;
• SOH – state of health of the battery, %;
• Total charge+ – total amount of charge received from charger (positive direction), Ah;
• Total charge- – total amount of charge transmitted to the load (negative direction), Ah;
• Total energy+ – total energy received by the battery modules from the charger, Wh;
• Total energy- – total energy spent by the battery modules on the load, Wh;
• Total energy regen – total energy received by the battery modules during recuperation, Wh;
• Total balanced energy – total energy dissipated by the battery modules on balancing resistors, Wh.
