2. Installation and connection

Last modified by Admin on 2025/03/18 12:35

Installation and connection

Safety rules

Before use, configure the system. Proper operation of the device is possible only if it is correctly configured.

To prevent the damage of device avoid electrostatic discharges while working with the battery.

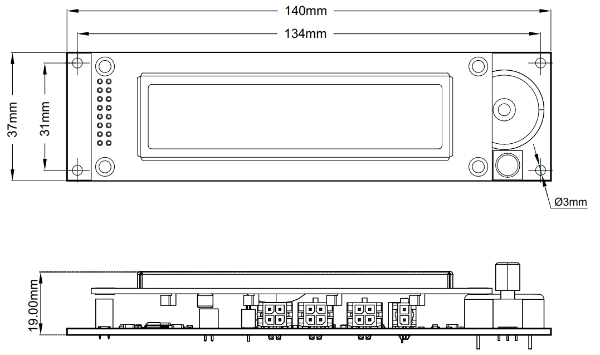

Installation

Parameter	Value
Overall dimensions (length × width × height), mm	140 × 37 × 23
Mounting dimensions (length × width), mm	134 × 31
Mounting holes	M3

Headers

The BMS Display has three headers for connecting the BMS (P3, P4 и P5), a header for an external button (P6) and a switch which connects a terminal resistor to the CAN bus (SWD1).

P3, P4 and P5 – headers for communication with BMS

Receptacle Housing: Molex 430250400. Terminals: Molex 43030

Pin	Name	Description
1	CANH	CAN H line for communication with the BMS controller
2	CANL	CAN L line for communication with the BMS controller
3	+5V	Supply voltage 5V
4	GND	Ground

P6 – header for external button

Receptacle Housing: Molex 430250200. Terminals: Molex 43030

Pin	Name	Description
1	BTN1	Button line (dry contact)
2	BTN2	Button line (dry contact)

SWD1 - CAN terminal resistor switch

To connect the terminal resistor between the CANH and CANL lines, switch the SWD1 to the ON position.
