Monitoring

Connectivity

Wi-Fi

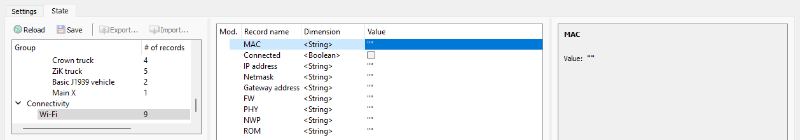

Information about the status of the connection to the Wi-Fi network is in the "Connectivity - Wi-Fi" section:

In this section:

• MAC – MAC address of the BMS Wi-Fi module;
• Connected – a flag of connection to a Wi-Fi network;
• IP address;
• Netmask;
• Gateway address;
• FW, PHY, NWP, ROM – firmware versions of the BMS Wi-Fi module.

Cellular

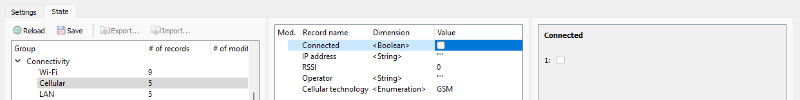

Information about the status of the connection to the cellular network is in the "Connectivity - Cellular" section:

In this section:

• Connected – a flag of connection to a cellular network;
• IP address;
• RSSI;
• Operator;
• Cellular technology:
  • GSM;
  • NB-IoT.

LAN

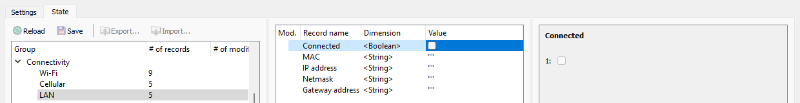

Information about the status of the connection to the local area network is in the "Connectivity - LAN" section:

In this section:

• Connected – a flag of connection to a local network;
• MAC – MAC address of LANmodule;
• IP address;
• Netmask;
• Gateway address.
