Monitoring

External equipment

Information about the status of external equipment is in the "External equipment" section.

J1939 Charger

Information about the status of communication with a J1939 charger is available in the "External equipment → Chargers → J1939 charger" section:

In this section:

• Online – a flag indicating if connection with the charger established;
• Voltage – a value of voltage received from the charger, V;
• Current – a value of current received from the charger, А.

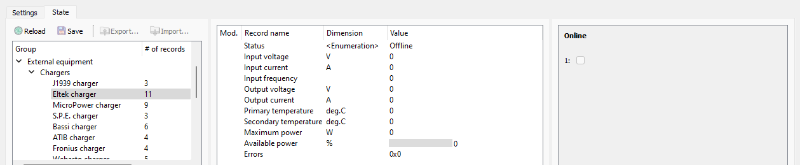

Eltek charger

Information about the status of communication with an Eltek charger is available in the "External equipment → Chargers → Eltek charger" section:

In this section:

• Status:
  • Offline – no connection with charger;
  • No charge;
  • Charge;
  • Recoverable error;
  • Non-recoverable error;
• Input voltage, V;
• Input current, А;
• Input frequency, Hz;
• Output voltage, V;
• Output current, А;
• Primary temperature – temperature measured by the main temperature sensor, °C;
• Secondary temperature – temperature measured by an additional temperature sensor, °C;
• Max power – maximum power that the charger can provide, W;
• Available power, %;
• Errors – hexadecimal word with charger errors.

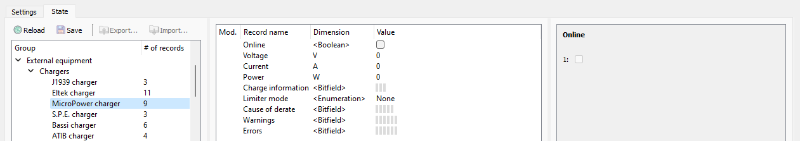

MicroPower charger

Information about the status of communication with a MicroPower charger is available in the "External equipment → Chargers → MicroPower charger" section:

In this section:

• Online – a flag of normal communication with the charger;
• Voltage, V;
• Current, A;
• Power, W;
• Charge information:
  • Voltage reached – output voltage of the charger is close to the required value;
  • Current reached – output current of the charger is close to the required value;
  • Power reached – output power of the charger is close to the required value;
• Limiter mode:
  • None;
  • Voltage;
  • Current;
  • Power;
  • Int. temperature – output is limited due to internal charger temperature;
  • Volt. boundary – bound voltage is reached;
  • Curr. boundary – bound current is reached;
  • Pow. boundary – bound power is reached;
  • DC limit;
  • AC limit;
  • Pow. AC limit – input power limitation;
  • Phase error;
• Cause of derate:
  • Phase error;
  • Parameters;
  • Poor power;
  • Internal temperature;
  • No load;
• Warnings, Errors:
  • Phase error;
  • Regulator error;
  • Low temperature;
  • High temperature;
  • Temperature protection;
  • CAN timeout.

S.P.E. charger

Information about the status of communication with an S.P.E. charger is available in the "External equipment → Chargers → S.P.E. charger" section:

In this section:

• Online – a flag of normal communication with the charger;
• Voltage, V;
• Current, A.

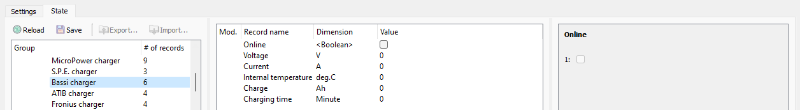

Bassi charger

Information about the status of communication with a Bassi charger is available in the "External equipment → Chargers → Bassi charger" section:

In this section:

• Online – a flag of normal communication with the charger;
• Voltage – voltage measured by the charger, V;
• Current – current measured by the charger, A;
• Internal temperature – temperature of the charger, °C;
• Charge – energy which the charger transferred to the battery, Ah;
• Charging time – duration of the battery charging, minute.

ATIB charger

Information about the status of communication with an ATIB charger is available in the "External equipment → Chargers → ATIB charger" section:

In this section:

• Online – a flag of normal communication with the charger;
• Voltage – voltage measured by the charger, V;
• Current – current measured by the charger, A;
• Status – bitfield with status indicators:
  • Charger error;
  • High temperature;
  • Parameters out of limits;
  • Battery is not connected;
  • Communication error;
  • Thermal derating;
  • Precharge.

Fronius charger

Information about the status of communication with a Fronius charger is available in the "External equipment → Chargers → Fronius charger" section:

In this section:

• Online – a flag of normal communication with the charger;
• Voltage – voltage measured by the charger, V;
• Current – current measured by the charger, A;
• Status – bitfield with status indicators:
  • Power unit on – charger power status;
  • Voltage match finish – charging finished due to voltage achievement;
  • Delay;
  • Derating;
  • Error – charger error;
  • Break – charging stopped.

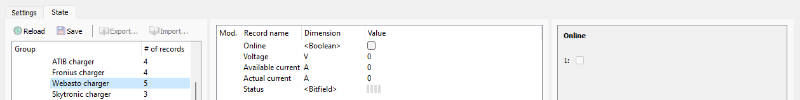

Webasto charger

Information about the status of communication with a Webasto charger is available in the "External equipment → Chargers → Webasto charger" section:

In this section:

• Online – a flag of normal communication with the charger;
• Voltage – voltage measured by the charger, V;
• Available current – maximum allowable charging current, A;
• Actual current – current measured by the charger, A;
• Status – bitfield with status indicators:
  • Ready to charge;
  • Charging – battery is charging;
  • High temperature – charger is overheated;
  • Fault state – charger error.

Skytronic charger

Information about the status of communication with a Skytronic charger is available in the "External equipment → Chargers → Skytronic charger" section:

In this section:

• Online – a flag of normal communication with the charger;
• Voltage – voltage measured by the charger, V;
• Actual current – current measured by the charger, A.

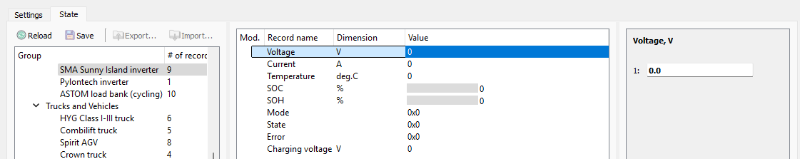

Sunny Island inverter

Information about the status of communication with a SMA Sunny Island inverter is available in the "External equipment → Inverters → Sunny Island inverter " section:

In this section:

• Voltage, V.
• Current, A;
• Tempareture, °C;
• SOC, %;
• SOH, %;
• Mode – inverter working mode code;
• State – inverter state code;
• Error – inverter error code;
• Charging voltage, V.

Pylontech inverter

Information about the status of communication with a Pylontech inverter is available in the "External equipment → Inverters → Pylontech inverter" section:

In this section:

• Online – a flag of normal communication with the inverter;

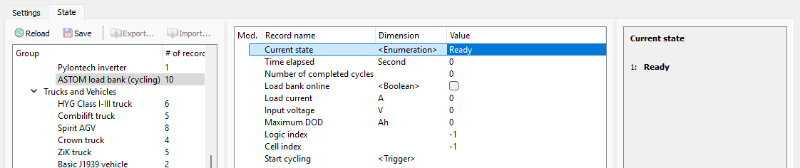

ASTOM load bank (cycling)

Information about the status of communication with a ASTOM load bank is available in the "External equipment → Inverters → ASTOM load bank (cycling)" section:

In this section:

• Current state – current state of the cycle algorithm;
• Time elapsed, second;
• Number of completed cycles;
• Load bank online;
• Load current, A;
• Input voltage, V;
• Maximim DOD – maximum measured DOD during cycling, Ah;
• Logic index – BMS Logic identifier with fastest discharging cell connected;
• Cell index – number of fastest discharging cell;
• Start cycling – a trigger to start cycling.

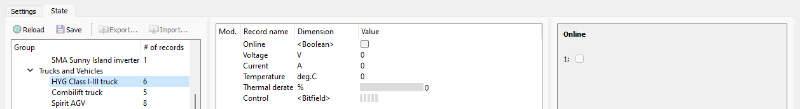

HYG Class I-III truck

Information about the status of communication with a HYG Class I-III truck is available in the "External equipment → Trucks and Vehicles → HYG Class I-III truck" section:

In this section:

• Online – a flag of normal communication with the forklift;
• Voltage, V;
• Current, А;
• Temperature, °C;
• Thermal derate, %;
• Control – bitfield with control commands transferred to the forklift:
  • Inhibit operation;
  • Immediate shutdown;
  • Limited operation – mode of limited functionality (it is formed if the battery SOC is less than the “SOC: Limited operation” value);
  • Traction inhibit (Gen.2: charger connected);
  • Lift lockout – blocking of the lift (it is formed if the battery SOC is less than the “SOC: Lift lockout” value).

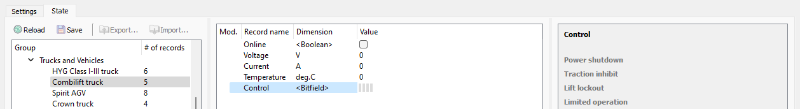

Combilift truck

Information about the status of communication with a Combilift truck is available in the "External equipment → Trucks and Vehicles → Combilift truck" section:

In this section:

• Online – a flag of normal communication with equipment;
• Voltage, V;
• Current, А;
• Temperature, °C;
• Control – bitfield with control commands transferred to the forklift:
  • Power shutdown – turn off the forklift power;
  • Traction inhibit;
  • Lift lockout – blocking of the lift (it is formed if the battery SOC is less than the “SOC: Lift lockout” value);
  • Limited operation – mode of limited functionality (it is formed if the battery SOC is less than the “SOC: Limited operation” value).

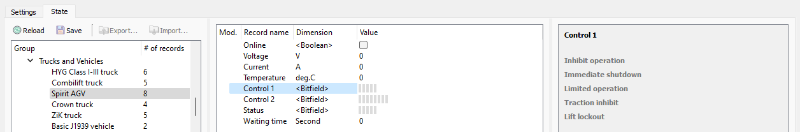

Spirit AGV

Information about the status of communication with a Spirit AGV is available in the "External equipment → Trucks and Vehicles → Spirit AGV" section:

In this section:

• Online – a flag of normal communication with the truck;
• Voltage, V;
• Current, A;
• Temperature, °C;
• Control 1 – first bitfield with control commands transferred to the forklift:
  • Inhibit operation;
  • Immediate shutdown;
  • Limited operation – mode of limited functionality (it is formed if the battery SOC is less than the “SOC: Limited operation” value);
  • Traction inhibit;
  • Lift lockout – blocking of the lift (it is formed if the battery SOC is less than the “SOC: Lift lockout” value).
• Control 2 – second bitfield with control commands transferred to the forklift:
  • Charger connected;
  • No charging or discharging current;
  • Charging;
  • Discharging;
  • Cell monitor offline / Cell count error / Battery cover opened;
  • Overcurrent / Overvoltage / Undervoltage;
  • High temperature / Low temperature;
  • Board high temperature.
• Status – forklift status sent to BMS:
  • Shutdown immediately;
  • Confirmed shutdown;
  • Charging / not charging;
  • Charger critical error;
  • Charger non-critical error;
• Waiting time, s.

Crown truck

Information about the status of communication with a Crown truck is available in the "External equipment → Trucks and Vehicles → Crown truck" section:

In this section:

• Online – communication status with the BMS Crown adapter;
• Voltage A2 (from battery) – voltage measured by the BMS Crown on battery, V;
• Voltage A1 (from truck) – voltage produced by the Crown forklift system, V;
• Relay – command to power on the Crown forklift.

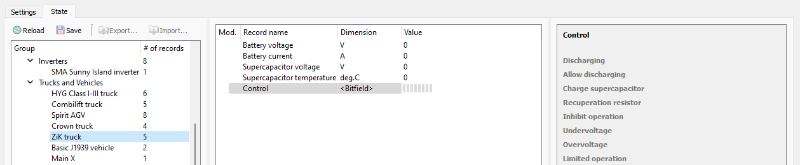

ZiK truck

Information about the status of communication with a ZiK truck is available in the "External equipment → Trucks and Vehicles → ZiK truck" section:

In this section:

• Battery voltage, V;
• Battery current, A;
• Supercapacitor voltage, V;
• Supercapacitor temperature, °C;
• Control – bitfield with control commands transferred to the forklift:
  • Discharging;
  • Allow discharging;
  • Charge supercapacitor;
  • Recuperation resistor;
  • Inhibit operation;
  • Undervoltage;
  • Overcurrent;
  • Limited operation;

Basic J1939 vehicle

Information about the status of communication with a vehicle via the J1939 protocol is available in the "External equipment → Trucks and Vehicles → Basic J1939 vehicle" section:

In this section:

• Online – a flag of normal communication with the vehicle;
• Maximum DOD – maximum allowed DOD of the battery, %.

Bender iso165C

Information about the status of communication with Bender iso165C is available in the "External equipment → IMD → Bender iso165C" section:

In this section:

• Online – a flag of normal communication with the IMD;
• Configured – a flag indicating successful device set up;
• Status – device status;
• Insulation resistance – measured insulation resistance, Ohm.

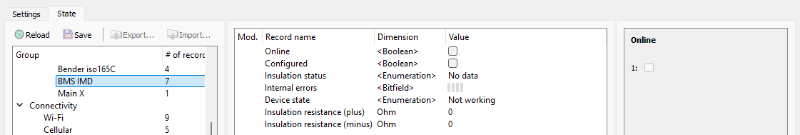

BMS IMD

Information about the status of communication with BMS IMD is available in the "External equipment → IMD → BMS IMD" section:

In this section:

• Online – a flag of normal communication with the IMD;
• Configured – a flag indicating successful device set up;
• Insulation status;
• Internal errors – internal device errors;
• Device state – device status;
• Insulation resistance (plus) – measured insulation resistance between positive line and chassis, Ohm;
• Insulation resistance (minus) – measured insulation resistance between negative line and chassis, Ohm.

Main X

Information about the status of communication with the BMS Main X is available in the "External equipment → BMS → Main X" section:

In this section:

• Online – connection status.
