4.1 Signals

Last modified by Admin on 2025/02/27 09:30

Monitoring

Signals

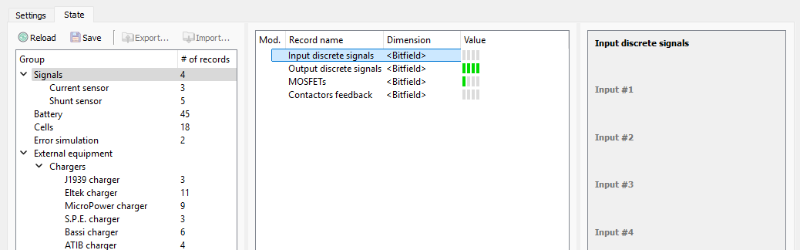

States of the device's discrete inputs are available in the "Signals → Input discrete signal" section:


In this section:

  • Input #1 - Input #4 – states of the inputs 1-4 respectively.

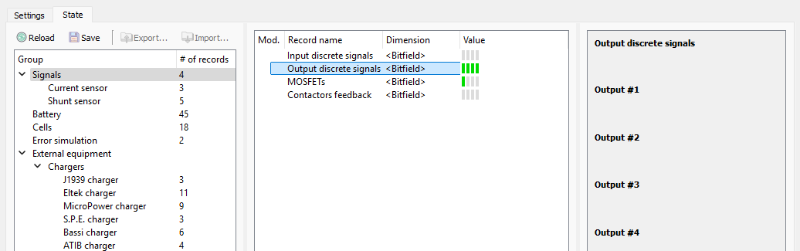

States of the device's discrete outputs are available in the "Signals → Output discrete signals" section:


In this section:

  • Output #1 - Output #4 – states of the outputs 1-4 respectively.

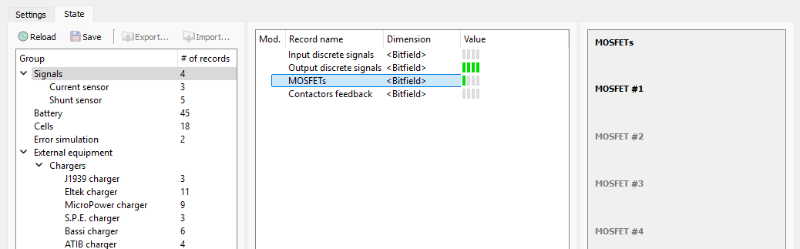

States of the device's MOSFET switches are available in the "Signals → MOSFETs" section:


In this section:

  • MOSFET #1 - MOSFET #4 – states of the MOSFET switches 1-4 respectively.

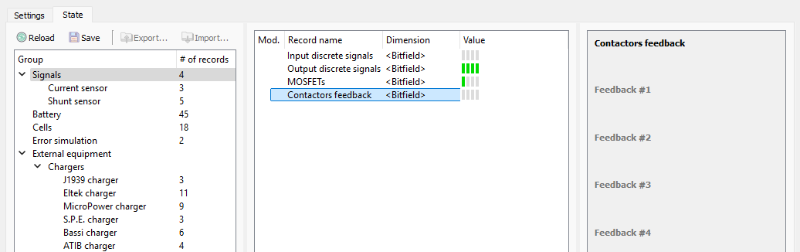

States of the device's contactors feedback signals are available in the "Signals → Contactors feedback" section:


In this section:

  • Feedback #1 - Feedback #4 – states of the contactor 1-4 feedback respectively.

Current sensor

State of the current sensors is available in the "Signals → Current sensor" section:


In this section:

  • Current sensor signal – output signal from the current sensor, V;
  • Auxiliary line – signal in the auxiliary line, V.
  • BMS consumption – current consumption of the BMS, A.

Shunt sensor

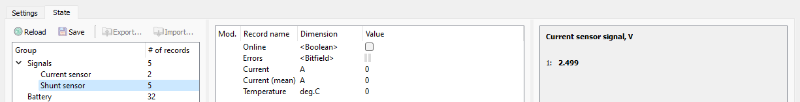

State of the shunt sensor is available in the "Signals → Shunt sensor" section:


In this section:

  • Online – a flag showing that the communication with the BMS Current Sensor is established;
  • Errors – a list of internal errors of the shunt sensor;
  • Current – an instantaneous value of current measured by the BMS Current Sensor, A (measuring frequency is 50 Hz);
  • Current (mean) – a mean value of current measured by the BMS Current Sensor, A (the value is calculated as an average of 100 consistent measurements);
  • Temperature – a temperature of the shunt sensor, °C.
