2. Installation and connection
Installation and connection
Installation procedure

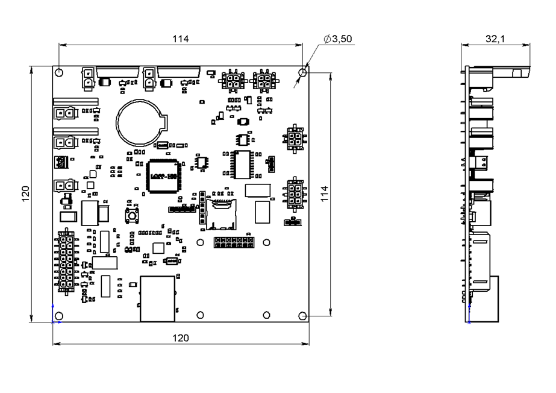

Overall and mounting dimensions of the BMS Main 2.1 are shown below.
| Parameter | Value |
| Overall dimensions (length × width × height), mm | 120 × 120 × 32 |
| Mounting dimensions (length × width), mm | 114 × 114 |
| Mounting holes | M3 |
Connection procedure
The mounting area of the BMS Main 2.1 must be protected from mechanical particles (dust, dirt, large objects) and water. The installation site must provide convenient access for subsequent connection to the device’s headers.
- Connect the charging and discharging contactors to the P6-P9 headers.
- Connect a current sensor to the P12 header according to its documentation. The positive current direction (indicated by an arrow on the sensor) corresponds to the battery charging. It is recommended to use a shielded cable to connect the current sensor, the shield should be grounded on the side of the current sensor. The cable should be positioned as far as possible from the high current circuits. If the current sensor has a reference voltage line, connect it to pin 4 of the P12 header.
- Connect the BMS Main 2.1 to the on-board CAN network. Observe the rules for connecting CAN devices. If the BMS Main 2.1 is the last device on a bus, close pins 1-2 on the P21 jumper, otherwise leave the jumper on pins 2-3.
- Connect a power supply to the P1 header. It is not recommended to power the BMS Main 2.1 from the battery only, since at a critical discharge of the battery, it is not possible to turn on the BMS and close the charging contactor.
Headers description

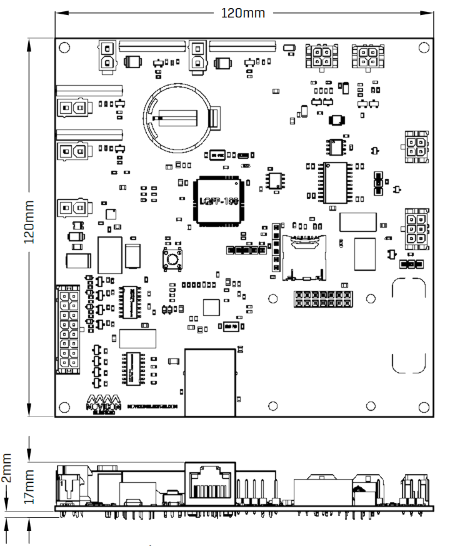

The BMS Main 2.1 headers are shown in figure below.
P1 – header for power supply
Receptacle Housing: Molex 39012020. Terminals: Molex 5556
| Pin | Name | Description |
| 1 | GND | Ground |
| 2 | V+ | Supply voltage 9-30V |
P15 – header for BMS Logic
Receptacle Housing: Molex 430250400. Terminals: Molex 43030
| Pin | Name | Description |
| 1 | RS485_A | RS-485 line A for communication with BMS Logic |
| 2 | RS485_B | RS-485 line B for communication with BMS Logic |
| 3 | +5V | Supply voltage for BMS Logic |
| 4 | GND | Ground |
P12 – header for current sensor
Receptacle Housing: Molex 430250400. Terminals: Molex 43030
| Pin | Name | Description |
| 1 | +5V | Supply voltage for the current sensor 5V, max 50 mA |
| 2 | GND | Ground |
| 3 | Vcs | ADC input (current sensor output) |
| 4 | Vref | ADC input (current sensor reference signal) |
P13 – header for humidity sensor
Receptacle Housing: Molex 430250400. Terminals: Molex 43030
| Pin | Name | Description |
| 1 | +5V | Supply voltage 5 V, max 50 mA |
| 2 | GND | Ground |
| 3 | Vhs | ADC input (humidity sensor output) |
| 4 | Vts | ADC input (temperature sensor output) |
P8 – header of relay 1
Receptacle Housing: Molex 39012020. Terminals: Molex 5556
By default, relay 1 is used to control the discharging contactor.
| Pin | Name | Description |
| 1 | V+ | Switching voltage (up to 55V, max 3A) |
| 2 | NO | Normally open contact |
Contactor connection example for all relays:
P9 – header of relay 2
Receptacle Housing: Molex 39012020. Terminals: Molex 5556
By default, relay 2 is used to output the “Allow charging” signal.
| Pin | Name | Description |
| 1 | V+ | Switching voltage (up to 55V, max 3A) |
| 2 | NO | Normally open contact |
Contactor connection example: see relay 1.
P6 – header of relay 3
Receptacle Housing: Molex 39012020. Terminals: Molex 5556
By default, relay 3 is used to control the charging contactor.
| Pin | Name | Description |
| 1 | V+ | Switching voltage up to 55V, up to 8A (board rev. 2.1b), up to 3A (board rev. 2.1c) |
| 2 | NO | Normally open contact |
Contactor connection example: see relay 1.
P7 – header of relay 4
Receptacle Housing: Molex 39012020. Terminals: Molex 5556
By default, relay 4 is used to control the heater.
| Pin | Name | Description |
| 1 | V+ | Switching voltage up to 55V, up to 8A (board rev. 2.1b), up to 3A (board rev. 2.1c) |
| 2 | NO | Normally open contact |
Contactor connection example: see relay 1.
P14 – header for CAN and RS-485 interfaces
Receptacle Housing: Molex 430250600. Terminals: Molex 43030
| Pin | Name | Description |
| 1 | EXT_RS485_A | RS-485 line A for communication with external equipment |
| 2 | CAN_H | CAN H line for communication with external equipment |
| 3 | +5V_CAN | Supply voltage 5V for external devices, max 200 mA |
| 4 | EXT_RS485_B | RS-485 line B for communication with external equipment |
| 5 | CAN_L | CAN L line for communication with external equipment |
| 6 | GND_CAN | Ground |
P21 – CAN termination resistor jumper
To connect the termination resistor between the lines CAN_H and CAN_L, install a jumper, according to the P21 pinout:
| Pin | Name | Description |
| 1-2 | 120 Ohm | Termination resistor 120 Ohm is connected |
| 2-3 | - | Termination resistor 120 Ohm is not connected |
P22 - RS-485 termination resistor jumper
To connect the termination resistor between the EXT_RS485_A and EXT_RS485_B lines, install a jumper according to the P22 pinout:
| Pin | Name | Description |
| 1-2 | 120 Ohm | Terminating resistor 120 Ohm is connected |
| 2-3 | - | Terminating resistor 120 Ohm is not connected |
P11 – header for discrete inputs/outputs
Receptacle Housing: Molex 430251600. Terminals: Molex 43030
| Pin | Name | Description |
| 16 | IN_1 | Discrete input #1 “dry contact” (+5V) |
| 8 | GND_1 | Discrete input #1 “dry contact” (ground) |
| 15 | IN_2 | Discrete input #2 “dry contact” (+5V) |
| 7 | GND_2 | Discrete input #2 “dry contact” (ground) |
| 14 | IN_3 | Discrete input #3 “dry contact” (+5V) |
| 6 | GND_3 | Discrete input #3 “dry contact” (ground) |
| 13 | IN_4 | Discrete input #4 “dry contact” (+5V) |
| 5 | GND_4 | Discrete input #4 “dry contact” (ground) |
| 12 | OUT_4 | Discrete output #4 (+5V, 20mA) |
| 4 | GND_OUT_4 | Discrete output #4 (ground) |
| 11 | OUT_3 | Discrete output #3 (+5V, 20mA) |
| 3 | GND_OUT_3 | Discrete output #3 (ground) |
| 10 | OUT_2 | Discrete output #2 (+5V, 20mA) |
| 2 | GND_OUT_2 | Discrete output #2 (ground) |
| 9 | OUT_1 | Discrete output #1 (+5V, 20mA) |
| 1 | GND_OUT_1 | Discrete output #1 (ground) |
Indicators
DS1 – power indicator
| State | Description |
| Lights red | The device is powered |
| Off | The device is not powered |
DS2 – operation indicator
| State | Description |
| Blinking green | The BMS firmware is running |
| Off | The BMS firmware is not running |
DS3 – communication indicator
| State | Description |
| Blinking yellow (2Hz) | Initializing communication with BMS Logic boards |
| Blinking yellow (25Hz) | Communication with BMS Logic is established |
DS4 – error indicator
| (State | Description |
| (Blinking red | Errors in communication with BMS Logic |
DS7 – relay 1 indicator
| State | Description |
| Lights green | Relay #1 is closed |
| Off | Relay #1 is opened |
DS8 – relay 2 indicator
| State | Description |
| Lights green | Relay #2 is closed |
| Off | Relay #2 is opened |
DS5 – relay 3 indicator
| State | Description |
| Lights green | Relay #3 is closed |
| Off | Relay #3 is opened |
DS6 – relay 4 indicator
| State | Description |
| Lights green | Relay #4 is closed |
| Off | Relay #4 is opened |
