Technical specifications

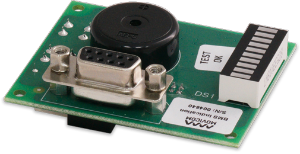

The BMS Indication 2.x connects to the BMS controllers by CAN bus and gets all information about the battery from the BMS over the CAN bus. Device has a 10-LED bar and a buzzer.
Specifications
| Parameter | Value |
| Supply voltage, V | 5.0±0.5 |
| Current consumption @5 V, mA (max) | 250 |
| CAN bus speed, kbps | 125, 250 (default), 500, 1000 |
| Dimensions (length × width × height), mm | 61 × 49 × 27 |
| Weight, g | 30±5 |
| Operating temperature range, ° С | -40÷75 |
| Degree of protection from external influences | IP00 |
| Header types | Molex series Mini-Fit, DB-9F |
