Technical specifications

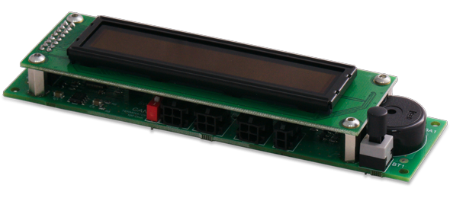

BMS Display connects to the BMS controllers by CAN bus and shows the state of charge, voltage, temperature, current and errors of the battery. Device has a 2-line OLED display and a buzzer.
Specifications
| Parameter | Value |
| Supply voltage, V | 5.0 ± 0.5 |
| Current consumption @5 V, mA (max) | 150 |
| CAN bus speed, kbps | 125, 250 (default), 500, 1000 |
| Dimensions (length × width × height), mm | 140 × 37 × 23 |
| Weight, g | 75 ± 10 |
| Operating temperature range, ° С | -40 to +85 |
| Degree of protection from external influences | IP00 |
| Header types | Molex series Micro-Fit |
